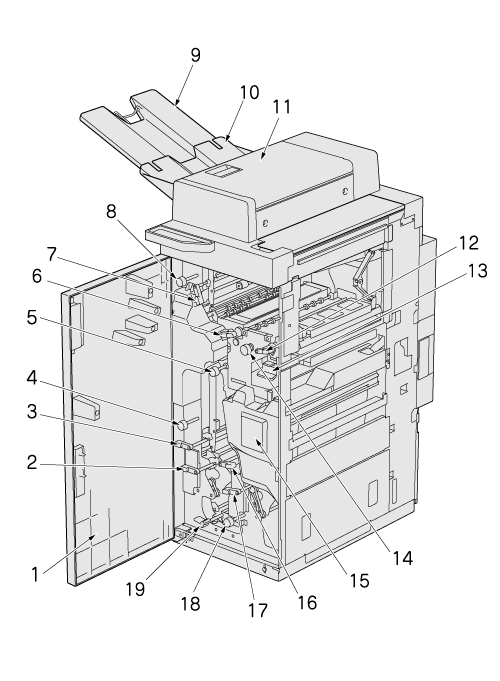

Relay Unit RU-702
No. | Name | Description |
|---|---|---|
1 | Relay unit front door | Opens to allow removal of paper jam. |
2 | Lever [RU12] | Opens rightward for removal of paper jam. |
3 | Lever [RU13] | Opens rightward for removal of paper jam. |
4 | Knob [RU14] | Turned to allow removal of paper jam. |
5 | Knob [RU7] | Turned to allow removal of paper jam. |
6 | Lever [RU4] | Opens upward for removal of paper jam. |
7 | Lever [RU5] | Opens rightward for removal of paper jam. |
8 | Knob [RU6] | Turned to allow removal of paper jam. |
9 | Purge tray extension | Pulled out to automatically inspect large paper sizes. |
10 | Purge Tray | Holds output paper that do not meet the standard. |
11 | Top cover | Opens upward for removal of paper jam. |
12 | Lever [RU1] | Opens upward for removal of paper jam. |
13 | Lever [RU2] | Catch and open downward for removal of paper jam. |
14 | Knob [RU3] | Turned to allow removal of paper jam. |
15 | Jam position display | Indicates the position of paper jam by LED lamps. |
16 | Lever [RU8] | Opens leftward for removal of paper jam. |
17 | Lever [RU9] | Remove upward and open rightward for removal of paper jam. |
18 | Knob [RU10] | Turned to allow removal of paper jam. |
19 | Lever [RU11] | Opens upward for removal of paper jam. |
