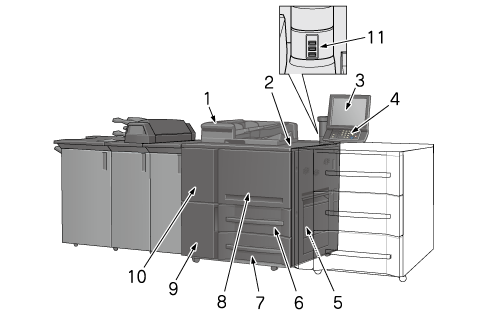

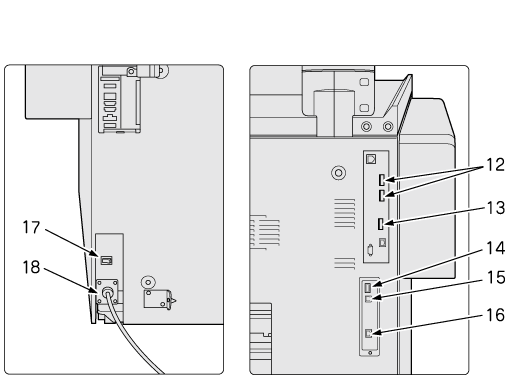

External Machine Items
No. | Name | Description |
|---|---|---|
1 | ADF (Dual Scan Document Feeder) | Feeds multiple originals on a sheet basis to scan data. Even a 2-sided original can be scanned by one paper feed operation without reversing paper. |
2 | Sub power switch | Turns machine power on/off when pressed. |
3 | Touch Panel | Displays screens such as the MACHINE screen to allow various settings and machine operations. Also, operation or troubleshooting procedures can be provided. |
4 | Control Panel | Used for various settings and machine operations. |
5 | Right side door | Opens rightward for removal of paper jam. When Paper Feeder Unit PF-709 or Paper Feed Unit PF-710 is mounted on the machine, open its tray left side door, then clear paper jams. |
6 | Tray 1 | Holds 1,500 sheets (80 g/m2 / 21 lb Bond). |
7 | Tray 2 | Holds 1,500 sheets (80 g/m2 / 21 lb Bond). |
8 | Front door | Opens to allow removal of paper jam. |
9 | Toner supply door | Opens to replace a toner bottle or waste toner box. |
10 | Left side door | Opens together with the front door to allow removal of mishandled paper or to turn off/on the main power switch. |
11 | Service port (USB 2.0 Type A 3) | Used to connect devices such as an external storage medium (USB flash drive, USB-HDD), keyboard and mouse. This port is available for low-power devices only. Please provide an external supply of power for devices that require a large amount of power. |
12 | Integrated Color Care Unit connection port | Used to connect the cable of Integrated Color Care Unit IQ-501 (only when Video Interface Kit VI-512 is mounted). |
13 | Video Interface Kit connection port | Used to connect the OEM controller cable (only when Video Interface Kit VI-509 is mounted). |
14 | Service port (USB 3.0 Type A 1) | Used to connect Authentication Unit AU-201S. |
15 | Service port (USB 2.0 Type B 1) | Connect this machine to the computer using a USB cable in order to use it as a local printer. |
16 | Network port | Connected with an Ethernet cable to operate the machine, or to use the machine as a network printer/scanner. |
17 | Dehumidifier heater switch | Turns on/off the dehumidifier heater of the main body. |
18 | Power cord | Supplies the main body with electric power. |

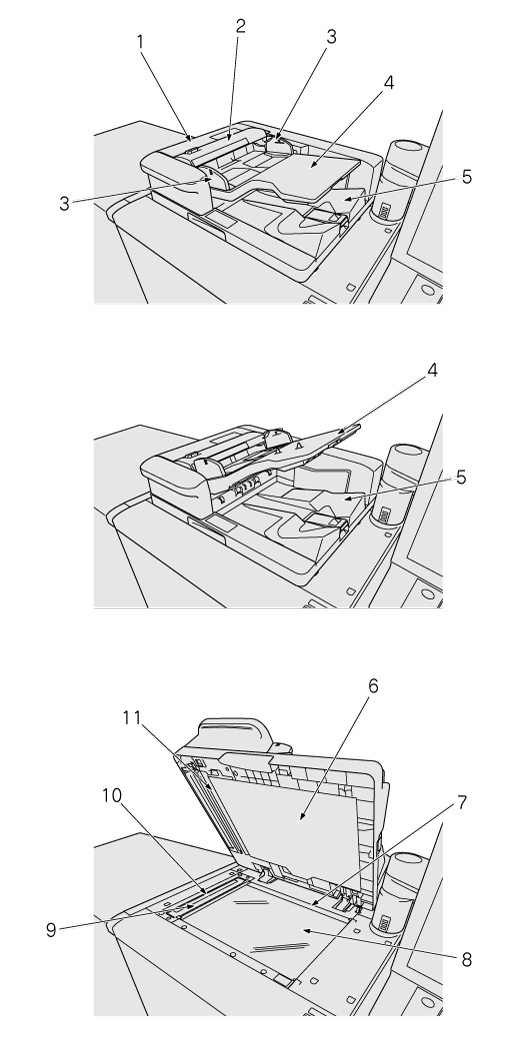

Dual Scan Document Feeder (ADF)
No. | Name | Description |
|---|---|---|
1 | Left original conveyance cover | Opens leftward to allow removal of jammed original. |
2 | ADF original scale | Indicates available original sizes, face to be placed, and unsuitable originals. |
3 | Original guides | Aligned to the edges of loaded originals. |
4 | Original feed tray | Loads the original to be scanned on the machine. Up to 300 sheets can be set. Opens upward to allow removal of jammed original. |
5 | Original catch tray | Outputs the scanned original. |
6 | ADF guide cover | Automatically positions the original on the original glass. Or, closed to cover the original positioned manually on the original glass. |
7 | Horizontal size guide | Measures the original size in horizontal direction. |
8 | Original glass | Scans original images into memory. |
9 | Slit scan glass | Scans original images into memory when using ADF. |
10 | Vertical size guide | Measures the original size in vertical direction. |
11 | Slit scan glass for back side | Scans original images in the back side on this part when using ADF. |
