Paper Feeder Unit PF-709

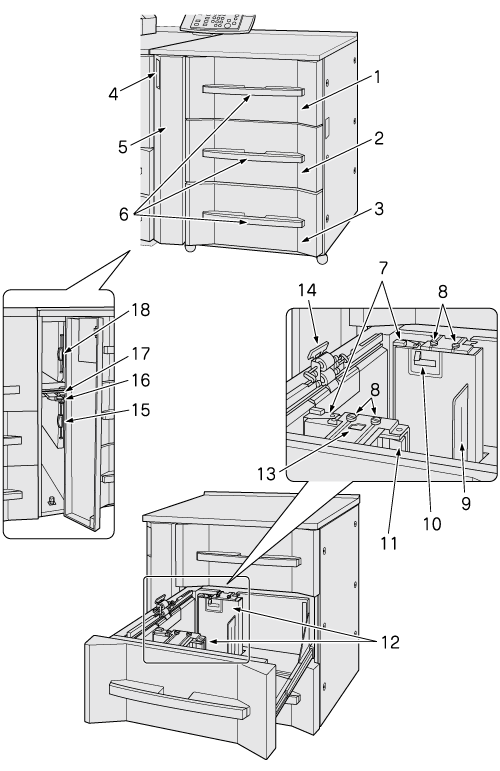

No. | Name | Description |
|---|---|---|
1 | Upper tray (Tray 3) (Tray 6 for 2nd unit) | Holds 2,000 sheets (80 g/m2 / 21 lb Bond). |
2 | Middle tray (Tray 4) (Tray 7 for 2nd unit) | Holds 2,000 sheets (80 g/m2 / 21 lb Bond). |
3 | Lower tray (Tray 5) (Tray 8 for 2nd unit) | Holds 2,000 sheets (80 g/m2 / 21 lb Bond). |
4 | Tray left side door knob | Held to open the tray left side door. |
5 | Tray left side door | Opens for removal of mishandled paper from the main body right side door or from the paper feeder unit trays. |
6 | Tray handle | Held to withdraw the tray. |
7 | Small size guides (2 pieces) | Open inward for print paper of the width less than 182 mm / 7.17". |
8 | Side guide lock knobs (4 pieces) | Turned to move or fix the side guide plates. |
9 | Rear guide plate | Aligned to the rear edge of loaded paper. |
10 | Air nozzle | Blows air to slightly float the paper to prevent double feed. |
11 | Side guide lock release lever | Pushed backward to release the lock in order to move side guide plates. |
12 | Side guide plates (2 pieces) | Aligned to the edges of loaded paper. |
13 | Paper size indicator | Indicates an appropriate position of side guide plates for the paper size to be loaded. |
14 | Feed roller | Feeds copy paper sheet by sheet into the main body. |
15 | Lower tray vertical conveyance door | Opens leftward for removal of paper jam. |
16 | Lever [PF1] | Opens downward for removal of paper jam. |
