Run Self-diagnostic Test

If Enhanced Security Mode is set to ON when the machine is turned on, generally test processing is automatically performed by Firmware Diagnosis (to diagnose whether the program is written correctly) and Device Diagnosis (to diagnose whether the device, on which the configuration information used for the security function is recorded, runs properly).

This operation can be performed manually by selecting Run Self-diagnostic Test.

Reference

Firmware Diagnosis

Diagnoses whether the encryption program is created based on the criteria.

Device Diagnosis

Verifies operations of the HDD, SSD, and non-volatile memory installed on the machine or Image Controller.

  1. Follow the procedure on Displaying the Administrator Setting Menu Screen to display the Administrator Setting Menu screen.

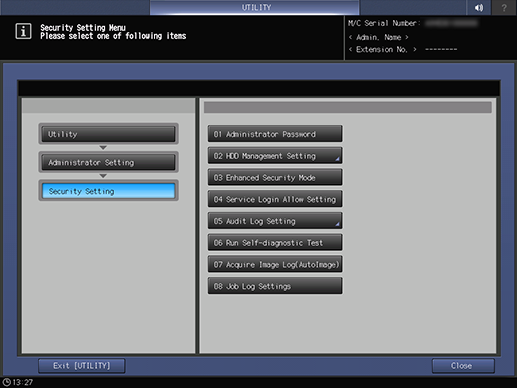

  2. On the Administrator Setting Menu screen, press Security Setting and Run Self-diagnostic Test in sequence.

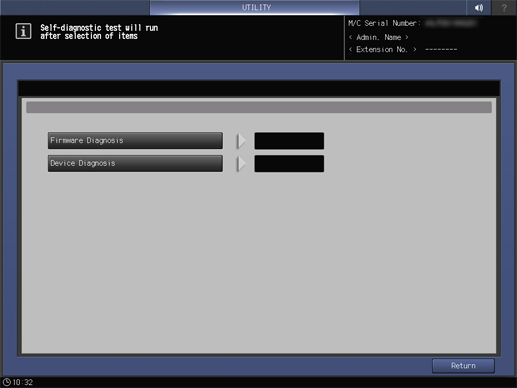

    • supplementary explanationThe Run Self-diagnostic Test is displayed.

  3. Press Firmware Diagnosis or Device Diagnosis.

  4. When OK is displayed, the diagnosis is completed. There are no problems with the security function.

  5. If any problems related to the security function are found, an error will occur. To restore the status to normal, contact your service representative.
