Authentication Device Settings

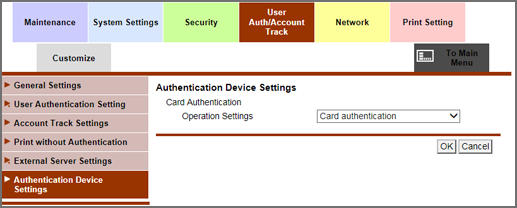

Click Authentication Device Settings on the menu of User Auth/Account Track tab to display this page.

Using the IC card authentication type such as Authentication Unit AU-201S allows you to log in to this machine or print a print job with IC card authentication.

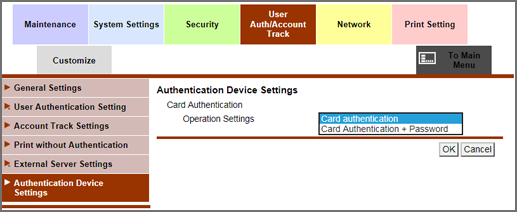

  1. In Authentication Device Settings - Operation Settings, select Card authentication or Card Authentication + Password.

    • supplementary explanationCard authentication: Simply place the IC card on the card reader to log in.

    • supplementary explanationCard Authentication + Password: Place the IC card on the card reader and enter the password to log in.

  2. Click OK. Clicking Cancel cancels the setting.

  3. Click OK on the setting complete screen.
