IPsec Setting: Protocol Setting

Registers protocol settings, edits the registered protocol settings, and deletes the registered protocol settings.

1. Display the IPsec Setting screen.

   • supplementary explanationThe procedures are the same as Steps 1 to 2 shown in IPsec Setting: IKEv1 Settings.

2. Click Create in Protocol Setting.

   • supplementary explanationWhen editing the registered protocol setting, click Edit.

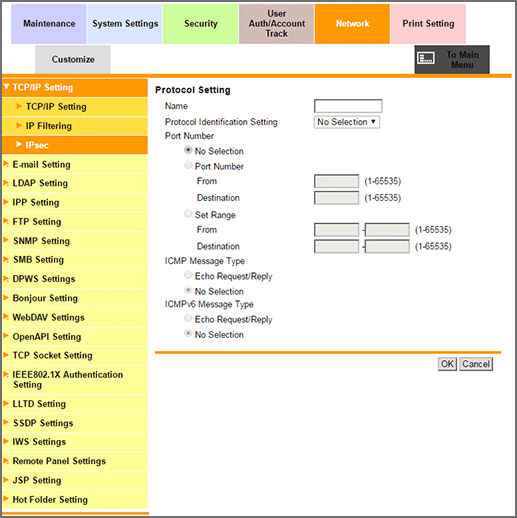

3. Enter the name of the protocol setting in the Name field.

   • supplementary explanationYou can enter up to 10 one-byte characters.

4. Select a protocol identification from the Protocol Identification Setting drop-down list.

5. If you have selected TCP or UDP for Protocol Identification Setting, select a radio button of the Port Number setting, and enter the port number.

6. If you have selected ICMP or ICMPv6 for Protocol Identification Setting, specify a message type.

7. Click OK. Clicking Cancel cancels the setting.

8. Click OK on the setting complete screen.

   The screen returns to the IPsec Setting screen.

9. When deleting the protocol setting, click Delete.

10. Click OK on the confirmation screen. Click Cancel to cancel the deletion.

11. Click OK on the setting complete screen.

    The screen returns to the IPsec Setting screen.
