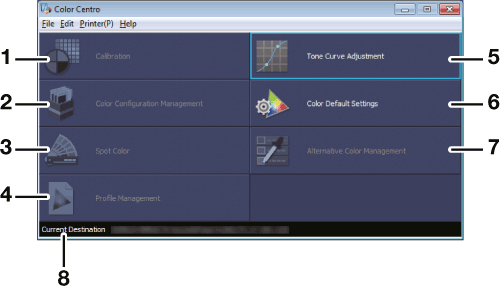

Overview of the Color Centro Screen

No.

Name

Description

1

Calibration

Displays the Calibration Manager screen. This screen provides functions that can be used to improve color printing accuracy and stability. This function is not available on the machine.

2

Color Configuration Management

Displays the Color Configuration Management screen. This screen allows you to manage various color printing settings in sets. This function is not available on the machine.

3

Spot Color

Displays the Spot Color screen. This screen allows you to adjust the output color for a spot color. This function is not available on the machine.

4

Profile Management

Displays the Profile Management screen. You can manage color conversion settings. This function is not available on the machine.

5

Tone Curve Adjustment

Displays the Tone Curve Adjustment screen. This screen allows you to adjust the color shade of an output image. For details about the operation procedure, refer to Tone Curve Adjustment.

6

Color Default Settings

Displays the Color Default Settings screen. This screen allows you to specify default in color conversion settings of the image controller. For details about the operation procedure, refer to Color Default Settings.

7

Alternative Color Management

Displays the Alternative Color Management screen. This screen allows you to replace a particular color with another color. This function is not available on the machine.

8

Status bar

Displays the device name and the IP address of the image controller that is connected. The status bar on each screen also displays the same information.

Menu

Menu Items

Description

File

Print Set Up Information

Prints the list of color settings of the image controller connected. For details about the operation procedure, refer to Printing The Settings.

Configuration Settings

Allows you to select the color space of the monitor profile to use for the Color Centro screens. This function is not available on the machine.

Exit

Close Color Centro. For details about the operation procedure, refer to Exit from Color Centro.

Edit

Calibration

Displays the Calibration Manager screen. This screen provides functions that can be used to improve color printing accuracy and stability.

This function is not available on the machine.

Tone Curve Adjustment

Displays the Tone Curve Adjustment screen. This screen allows you to adjust the color shade of an output image.

Spot Color

Displays the Spot Color screen. This screen allows you to adjust the output color for a spot color.

This function is not available on the machine.

Alternative Color Management

Displays the Alternative Color Management screen. This screen allows you to replace a particular color with another color.

This function is not available on the machine.

Color Default Settings

Displays the Color Default Settings screen. This screen allows you to set the default values for the image controller's color conversion settings.

Color Configuration Management

Displays the Color Configuration Management screen. This screen allows you to manage various color printing settings in sets.

This function is not available on the machine.

Profile Management

Displays the Profile Management screen. You can manage color conversion settings.

This function is not available on the machine.

Printer

Change Connection

Displays the Connect Printer screen. You can change which image controller to connect Color Centro with.

Help

Help

Explains each function and its screen.

Version Information

Displays the version of Color Centro.
