Adjusting the Layout for Copying

To enlarge or reduce an image for copying ([Zoom])

To display:
  • [Classic Style]
    • [Copy]
      • [Zoom]

Copy an original image enlarged or reduced by an arbitrary zoom ratio.

Setting

Description

[Auto]

Automatically makes a copy with the optimal zoom ratio to match the image of the original with the paper size. This is convenient because you do not need to specify the zoom ratio.

[+]/[-]

Enter the zoom ratio manually.

Fixed Zoom

Select a preset zoom ratio when copying a standard-size original onto standard-size paper.

The paper tray is automatically exchanged depending on the selected zoom ratio.

[Minimal]

Places an original image in the center after slightly reducing the original size when copying.

Select this option when copying the entire original image, including its edges.

[Manual]

Specify zoom ratios individually for the lengthwise and widthwise directions for copying.

Select [X] or [Y], and enter the zoom ratio.

[Zoom Ratio]

Makes a copy at the registered zoom ratio.

If you tap [Set Zoom], you can change the registered zoom ratio.

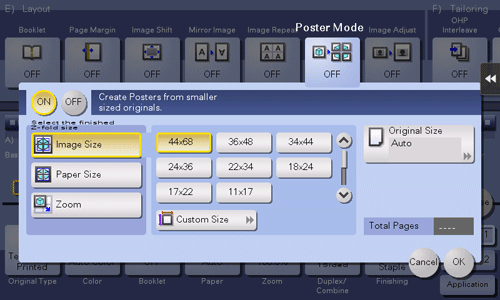

To copy a poster-sized image ([Poster Mode])

To display:
  • [Classic Style]
    • [Copy]
      • [Application]
        • [Layout]
          • [Poster Mode]

Enlarges an original image, and divides it into multiple sheets to make copies. When you join the printed sheets, you can create a large image like a poster.

Setting

Description

[ON]/[OFF]

Select [ON] to specify Poster Mode.

[Select the finished Z-fold size]

Specify the finished size by using any of [Image Size], [Paper Size] and [Zoom].

  • [Image Size]: Specify the finished size after the image is enlarged, in paper size. When you join the copied sheets at overlap margins, the finished size is the same as the specified paper size.

  • [Paper Size]: Specify the finished size, which includes both the size after the image is enlarged and the overlap margin, in paper size. When you join the copied sheets at overlap margins, the finished size is smaller than the specified paper size.

  • [Zoom]: Specify the finished size after the image is enlarged according to the zoom ratio. When you join the copied sheets at overlap margins, the finished size is the same as the specified zoom ratio. The required number of print sheets depends on the zoom ratio you have specified.

[Original Size]

When the size of the original is not detected correctly, specify the size of the original you want to scan. If the machine cannot detect the size of irregular sized originals or photos, manually specify the size.

[Total Pages]

When you have selected other than [Auto] in [Original Size], the number of sheets to be output is displayed.

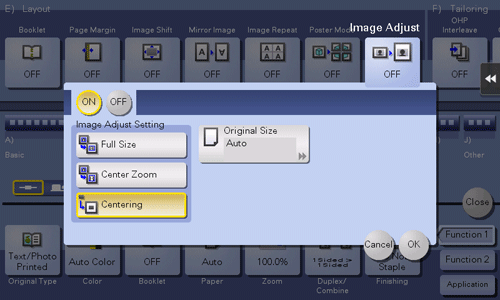

To copy the original image without margin ([Image Adjust])

To display:
  • [Classic Style]
    • [Copy]
      • [Application]
        • [Layout]
          • [Image Adjust]

Specify how to arrange the original image on the paper. You can enlarge a part of the original to the maximum limits of the paper, or arrange the original image at the center of the page while the original size remains unchanged.

Setting

Description

[ON]/[OFF]

Select [ON] to specify Image Adjust.

[Image Adjust Setting]

Select the image arrangement method.

  • [Full Size]: Enlarge or reduce the original image so that it fits the print paper, and print on the center of the paper. Place the original on the Original Glass.

  • [Center Zoom]: Enlarge or reduce the original image according to the lengthwise or widthwise side of the original image and print paper whichever is larger, and print on the center of the paper. Part of the original may be lost. Place the original on the Original Glass.

  • [Centering]: The original image is copied at the center of the page without enlarging or reducing it. If the paper size is smaller than the image, part of the image may be lost.

[Original Size]

When the size of the original is not detected correctly, specify the size of the original you want to scan. If the machine cannot detect the size of irregular sized originals or photos, manually specify the size.

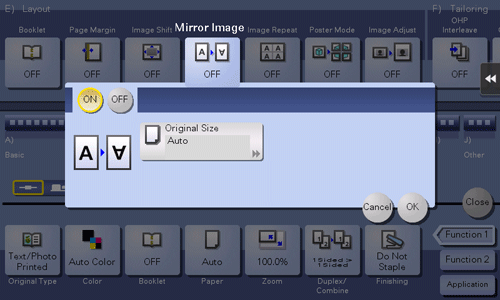

To reverse the left and right of the original image ([Mirror Image])

To display:
  • [Classic Style]
    • [Copy]
      • [Application]
        • [Layout]
          • [Mirror Image]

Copy the original image by reversing its left and right, like a reflection image on the mirror.

Setting

Description

[ON]/[OFF]

Select [ON] to specify Mirror Image.

[Original Size]

When the size of the original is not detected correctly, specify the size of the original you want to scan. If the machine cannot detect the size of irregular sized originals or photos, manually specify the size.

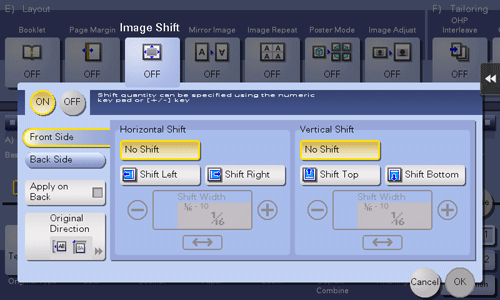

To fine-adjust the print position ([Image Shift])

To display:
  • [Classic Style]
    • [Copy]
      • [Application]
        • [Layout]
          • [Image Shift]

You can fine tune the image position by shifting it in a horizontal or vertical direction according to the paper size. When an image is printed on both sides, the image position on the back side can also be fine tuned.

Setting

Description

[ON]/[OFF]

Select [ON] to shift an image.

[Front Side]/[Back Side]

Adjusts the image position on the print paper by shifting it in horizontal or vertical direction.

  • [Shift Left]/[Shift Right]: Shifts the image to the left or right. Select the shift direction, and specify the shift amount in [Shift Width].

  • [Shift Top]/[Shift Bottom]: Shifts the image upward or downward. Select the shift direction, and specify the shift amount in [Shift Width].

[Apply on Back]

Set this item to use the same settings as used on the front side for the rear side of the print paper.

[Original Direction]

Specify the original loading direction so that the vertical direction of the scanned original is set correctly.

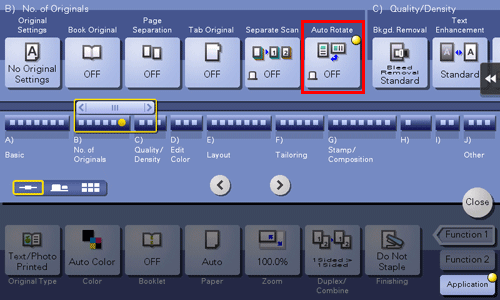

To copy the original in the loading direction with no rotation ([Auto Rotate])

To display:
  • [Classic Style]
    • [Copy]
      • [Application]
        • [No. of Originals]
          • [Auto Rotate]

In general use, this machine automatically rotates the original image according to the paper direction to make a copy. Turning [Auto Rotate] OFF as needed enables you to make a copy without rotating the original image. This function is available when you want to copy only a part of the original.
