Loading small-size paper into Paper Feed Unit PF-710

The minimum width between the side guide plates of the Paper Feed Unit PF-710 is 139 mm / 5.47". To load paper of which the size is less than the minimum width, open the small size guides and place paper inside them.

  • preconditionWhen loading a paper size larger than the minimum width between the side guide plates, do not open the small size guides.

  • preconditionBe sure to open small size guides as a pair when using the small size guides. Do not open only a half of them to load paper.

  1. Withdraw the tray to load paper in.

    NOTICE
    • Trays cannot be withdrawn when the machine is not powered. Be sure to turn the sub power switch ON.

    • Only one tray can be withdrawn at a time.

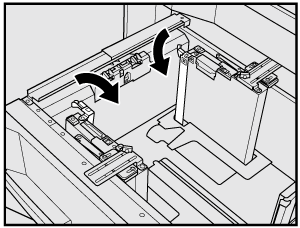

  2. Open the small size guides provided for each of the front and rear side guide plates.

  3. Slide the two paper control levers leftward, and lock the paper holding plate.

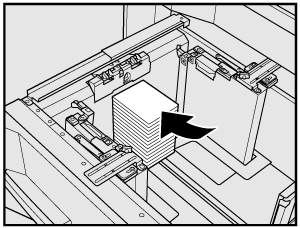

  4. Place paper with the print side up.

    • supplementary explanationAlign the stack of paper to the left side of the tray.

    NOTICE
    • Do not load above the limit level indicated on the small size guides.

  5. Move the side guide plates to align the small size guides to the paper.

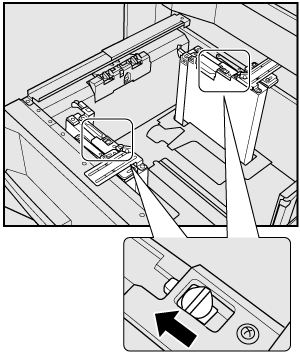

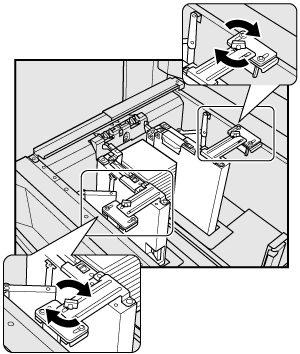

    • supplementary explanationTurn the side guide fixing knobs of the side guide plates counterclockwise to loosen them.

    • supplementary explanationPushing the lock release lever of the front side guide plate, move the small size guides to align them to the paper.

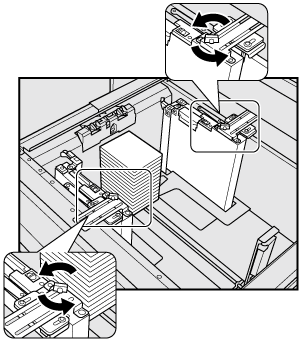

    • supplementary explanationTurn the side guide fixing knobs of the side guide plates clockwise to fix the small size guides.

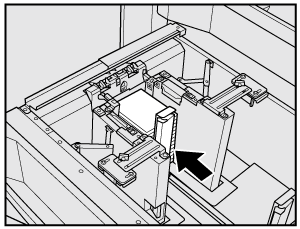

  6. Align the rear guide plate to the paper.

    • supplementary explanationPushing the lock release lever, align the rear guide plate to the paper.

    NOTICE
    • Be sure that the rear guide plate is securely aligned to the paper. If any gap is left between the rear guide plate and paper, the machine cannot detect the correct paper size, and paper jams or machine trouble may be caused.

  7. Push in the tray until it locks into place.

    The paper level indicator of the tray changes from to on the MACHINE screen and COPY screen.
