Setting printer driver

Menu item

Set the following items in the printer driver.

Menu item

  • 2-Sided

  • Imposition (2 in 1)

  • Binding Position

  • Original Size

  • Original Orientation

  • Paper Size

  • Staple

  • Paper Tray

Also, set the following on the Print window of Application.

  • Copies

Tips
  • When setting in the printer driver, make sure that there are no previous settings left in each item in the tabs Layout, Finishing, Cover, etc.

Setting the Properties Window

  1. Open the original data with the application, and then click Print on the File menu.

  2. Select the printer to use for printing and click Properties.

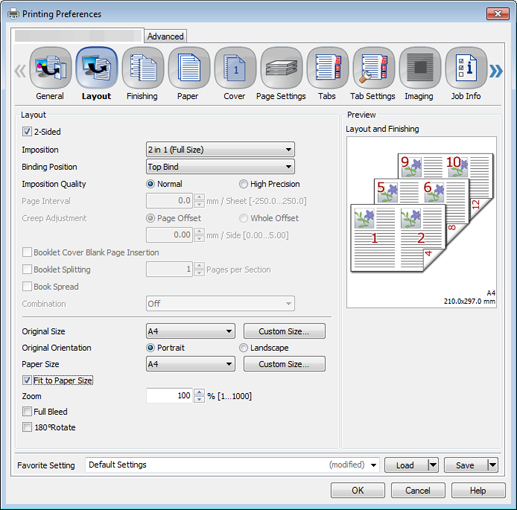

  3. Click the Layout tab, and then set the following items.

    Example:

    Item

    Setting

    2-Sided

    Checked

    Imposition

    2 in 1 (Full Size)

    Binding Position

    Top Bind

    Original Size

    A4

    Original Orientation

    Portrait

    Paper Size

    A4

    Fit to Paper Size

    Checked

    • supplementary explanationIf the specified settings are not displayed on the preview, click Acquire Device Information on the Configure tab to obtain the device information.

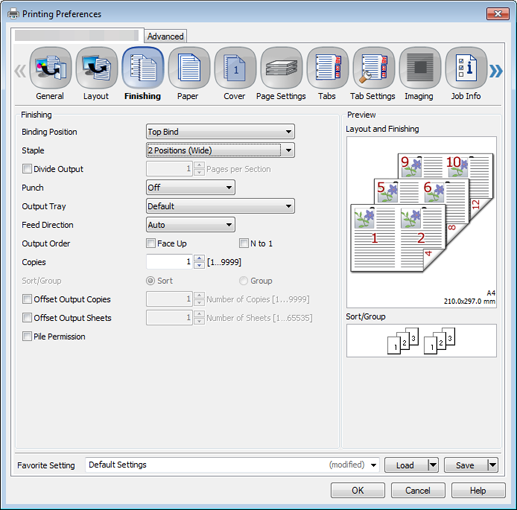

  4. Click the Finishing tab, and then set Staple.

    Example:

    Item

    Setting

    Staple

    Select 2 Positions (Wide), 2 Positions (Narrow), or 2 Positions (Narrow+).

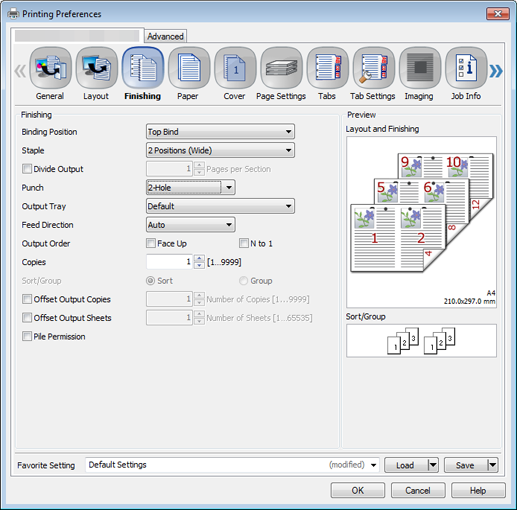

    • supplementary explanationSetting Punch allows you to make punch holes (2 holes, 3 holes, 4 holes, or Swedish 4 holes). Mount Punch Kit PK-522 to Finisher FS-532.

  5. Click the Paper tab, and then click Acquire Tray and Paper Data.

    When the tray and paper data is acquired, a green checkmark is displayed.

    • supplementary explanationIf the tray and paper data could not be acquired, a red x checkmark is displayed. Check if the paper tray for Option is correctly mounted.

  6. Select a tray in Paper Tray, and then click OK.

    Example: Here, the explanation assumes that papers (A4: Long Edge) have been set in Tray 1.

Output

  1. On the Print screen, enter the Copies and click Print.

    Printing starts. When the printing is completed, go to Checking the finishing, and check the finishing of the printed document.
