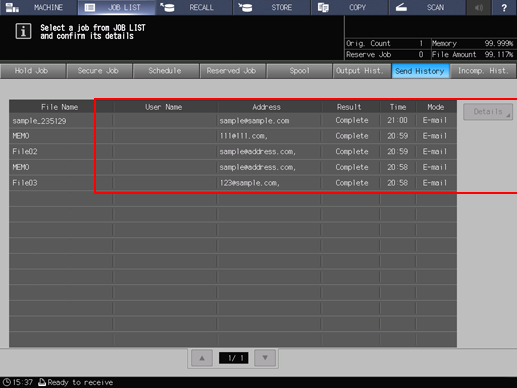

Send History

Displays the sending history.

Details of each job can be checked on the Ticket Details screen.

No.

Name

Description

1

Send History

Press to display the Send History screen.

2

File Name

Displays the file name when applied.

3

User Name

Displays the user name when registered.

4

Address

Displays the destination address.

5

Result

Displays the transmission result such as Complete or Cancel.

6

Time

Displays the time of transmission in 24-hour format.

7

Mode

Displays a send job mode (Email, HDD, FTP, SMB, WebDAV, USB, or TWAIN).

When selecting multiple destinations, only one destination is displayed. (The order of priority is: Email - HDD - FTP - SMB - WebDAV - USB - TWAIN)

8

Details

Pressed for a job to be checked in detail after you select it from the list. The Ticket Details screen for the selected job is displayed.

9

Scroll keys

Used to scroll the list of send history. The total page count and current page number of the send history list are displayed between the keys.

  • preconditionHow to check

  1. Press JOB LIST, then press Send History.

  2. Check the status of jobs sent in the list of the screen.

    If 16 or more jobs exist, press down or up to display.

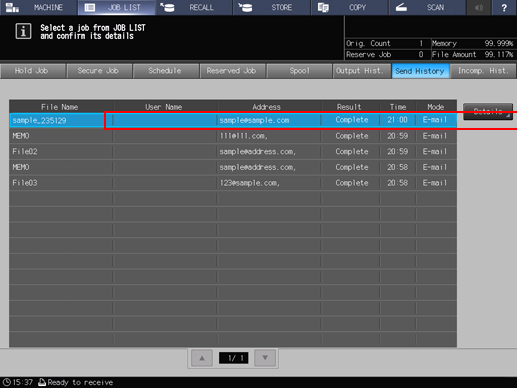

  3. Select a job item you want to check, then press Details.

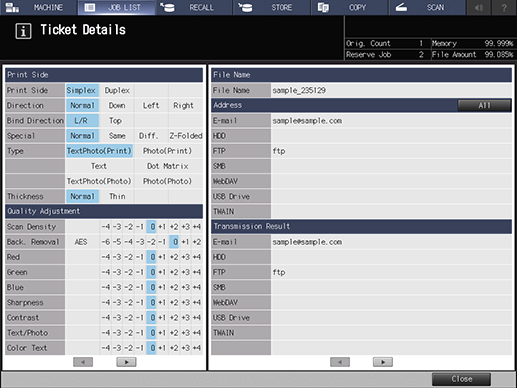

  4. Check the details on the Ticket Details screen.

  5. After checking the details, press Close.
