Adjusting the Tilt of Punch Positions

You can adjust the paper deflection (the amount of paper loop) of the registration roller to fix the tilt of punch hole position.

As an example, this section explains how to decrease the paper deflection of the registration roller and adjust the tilt of punch hole position by using the Finisher FS-532 mounted Punch Kit PK-522.

Meaning and Purpose of Punch Position Tilt Adjustment

  • When the punch hole position is tilted, this function allows you to adjust the tilt of punch hole position by specifying the value of paper loop of the registration roller.

  • - value: Decreases the paper deflection to adjust the tilt.

  • + value: Increases the paper deflection to adjust the tilt.

When to perform

  • When the punch hole position is tilted

Intended Environment

Image Controller

Built-in image controller

Mounted finisher

Finisher FS-532 mounted Punch Kit PK-522

* The sample screen may be different from the actual display depending on your system environment.

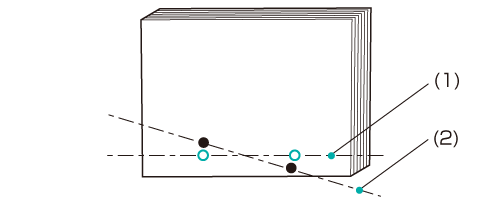

  1. Check the tilt of desired punch hole position (1) and the current punch hole position (2).

  2. On the touch panel of the main body, press Adjustment on the MACHINE screen.

  3. Press Finisher Adjustment on the Adjustment Menu screen.

  4. Press Staple Finisher Adjustment on the Finisher Adjustment menu.

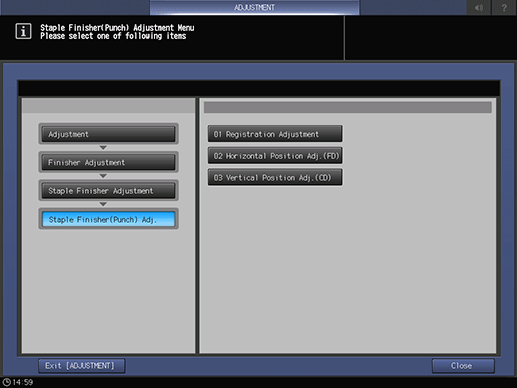

  5. Press Staple Finisher(Punch) Adj. on the Staple Finisher Adjustment menu.

  6. Press Registration Adjustment on the Staple Finisher(Punch) Adj..

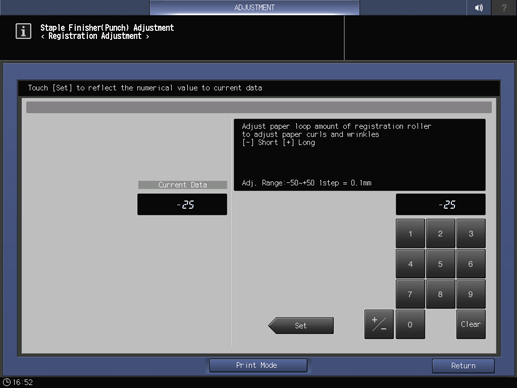

  7. Enter the adjustment value and press Set.

    Example: decrease the paper deflection (the amount of paper loop) of the registration roller by 2.5 mm to adjust the tilt of punch hole position.

    Item

    Setting

    Current Data

    Decreasing the amount of paper loop of the registration roller by 2.5 mm (-25)

    • Press +/-, 2, 5, and Set to enter the value -25. This decrease the paper deflection of registration roller by 2.5 mm.

    • supplementary explanationPress the keypad on the screen to set the value.

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationThe values are in 0.1 mm increments. (1 = 0.1 mm)

    • supplementary explanationPressing Print Mode switches the mode to print mode, which allows you to print the original.

  8. Print the original again and check the tilt of punch hole position.

    Repeat the above steps until the desired punch hole position is obtained. Increasing or decreasing the amount of paper loop allows you to adjust the tilt of punch hole position.
