Preparing the user's computer printing environment (with no administrator privileges assigned)

Preparation of LK-114_InstallTool

When the user computer provides no administrator privileges, create LK-114_InstallTool using LK-114_InstallerCreateTool, then distribute it to the user. For details on how to create LK-114_InstallTool, refer to Here. Install LK-114_ManagerPort and the printer driver using LK-114_InstallTool distributed from the administrator.

This section describes how to perform the installation when [User selects a printer driver to be installed and sets ManagerPort Settings.] is selected in [Installation operation of the user] to create LK-114_InstallTool using LK-114_InstallerCreateTool.

  • When you select [Automatically perform all] in [Installation operation of the user] while LK-114_InstallTool is created using LK-114_InstallerCreateTool, double-click [invoke.exe] of LK-114_InstallTool, and follow the on-screen instructions to install it. The LK-114_ManagerPort installation, printer driver installation, and LK-114_ManagerPort setting are carried out automatically.

Starting LK-114_InstallTool

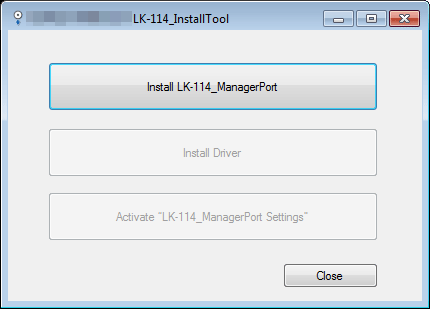

Double-click [invoke.exe] in the [LK-114_InstallTool] folder distributed from the administrator; the LK-114_InstallTool installation target selection window is displayed.

The LK-114_InstallTool installation target selection window is comprised of the following components.

Item

Description

[Install LK-114_ManagerPort]

Install LK-114_ManagerPort on the machine.

If the new LK-114_ManagerPort has a newer version than the existing one, [Update LK-114_ManagerPort] is displayed as an item.

[Install Driver]

Install the printer driver.

[Activate "LK-114_ManagerPort Settings"]

Configure LK-114_ManagerPort settings.

Installing LK-114_ManagerPort

Install LK-114_ManagerPort using LK-114_InstallTool distributed from the administrator.

If LK-114_InstallTool is not provided, contact your administrator.

  1. Click [Install LK-114_ManagerPort] on the LK-114_InstallTool installation target selection screen.

    • To update, click [Update LK-114_ManagerPort].

  2. Click [Yes] on the installation start window.

  3. Select a language to use for installation, then click [OK].

  4. Click [Next].

  5. Select [Agree] for terms specified in the license agreement, then click [Next].

  6. Check the destination folder, then click [Next].

    • To install LK-114_ManagerPort in another folder, click [Change], then specify a folder.

  7. Click [Install].

    LK-114_ManagerPort installation starts. When installation is completed, the completion window appears.

  8. Click [OK].

    LK-114_ManagerPort installation is then completed.

Installing the printer driver

Install the printer driver using LK-114_InstallTool distributed from the administrator.

If LK-114_InstallTool is not provided, contact your administrator.

  • Before installation, check that LK-114_ManagerPort is installed on the machine.

  1. Click [Install Driver] on the LK-114_InstallTool installation target selection window.

    • If multiple printer drivers are selected in LK-114_InstallerCreateTool, the printer driver selection window is displayed. Select the printer driver to be installed.

  2. Read the license agreement, then click [Agree].

  3. Select the printer driver setup file created using Driver Packaging Utility, then click [Execute].

    Installation starts.

  4. Click [Finish].

    This completes the installation process of the printer driver.

Configuring LK-114_ManagerPort settings

Configure LK-114_ManagerPort settings. Print jobs can be sent to the storage machine by selecting the printer for which LK-114_ManagerPort is set as the port when making prints.

  • Check that LK-114_ManagerPort is installed.

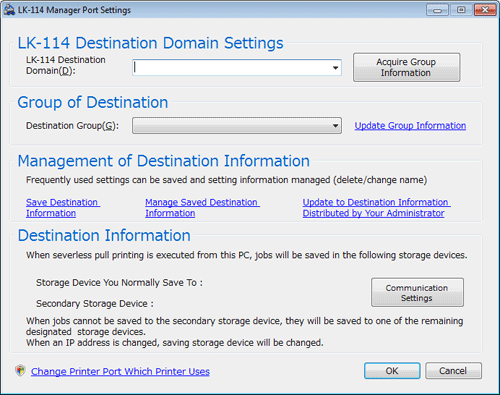

  1. Display the LK-114_ManagerPort setting window.

    • For LK-114_InstallTool, click [Activate "LK-114_ManagerPort Settings"] on the LK-114_InstallTool installation target selection window.

    • In Windows 8.1/10, select [All apps], and then click [MFP-Printer Utility] - [LK-114_ManagerPort] - [LK-114_ManagerPort Settings].

    • In Windows 7, select [All Programs], and then click [MFP-Printer Utility] - [LK-114_ManagerPort] - [LK-114_ManagerPort Settings].

  2. In [LK-114 Destination Domain], specify the topology machine to acquire the serverless pull printing group list.

    • Enter the IP address of the topology machine.

    • If destination information is stored, you can select the desired topology machine from the drop-down list.

  3. Click [Acquire Group Information].

  4. In [Destination Group], select the serverless pull printing group to send print jobs to.

    • To acquire group information again and update the details of the drop-down list, click [Update Group Information].

  5. Save the configured destination information as needed.

    • Click [Save Destination Information], then specify the destination name for management.

    • Clicking [Manage Saved Destination Information] displays the destination information management page. You can change the destination name or delete destination information.

  6. When a change is made in the SNMP settings or OpenAPI settings of the storage machine, click [Communication Settings], then configure settings to establish communications with the storage machine.

  7. Click [Change Printer Port Which Printer Uses].

  8. Change the port of the target printer to [LK-114_ManagerPort], then click [OK].

    • If the printer driver is installed using LK-114_InstallTool, check that [LK-114_ManagerPort] is selected.

  9. Click [OK].

  • If you log in to Windows with the Guest account, LK-114_ManagerPort is not available.

  • A change of the port for the printer requires the computer's administrator privileges.

  • You can import destination information from a file. Click [Update to Destination Information Distributed by Your Administrator], then select the destination information file.

  • You can switch the destination serverless pull printing group depending on the location you want to perform serverless pull printing at by saving destination information using LK-114_ManagerPort.
