HomePC-FAXThe Printing Preferences Screen of the Fax Driver

The [Printing Preferences] Screen of the Fax Driver

How to display the [Printing Preferences] page

The fax driver has two screens for configuring settings: the [Properties] screen and the [Printing Preferences] screen. This section describes the [Printing Preferences] window.

The [Printing Preferences] window has multiple tabs on each of which related functions are grouped to enable you to configure print functions unique to this machine. To display the [Printing Preferences] window, take the following steps:

  1. Open [Devices and Printers].

    • For information on how to display [Devices and Printers], refer to Here.

  2. Open [Printing Preferences].

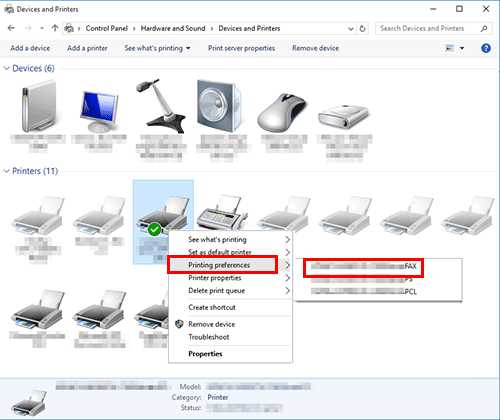

    • In Windows 7/8.1/10/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, right-click the icon of the installed printer, and from [Printing Preferences], click the displayed printer name.

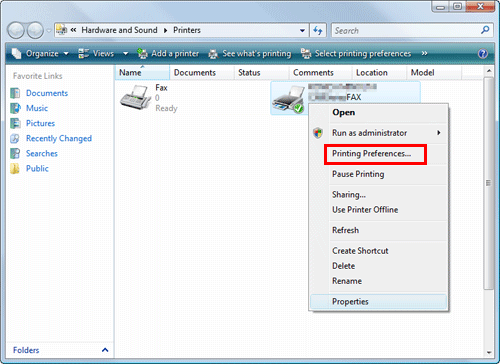

    • In Windows Server 2008, right-click the icon of the installed printer, then click [Printing Preferences...].

    The [Printing Preferences] screen is opened.

  • The print settings changed here are registered as default values. To temporarily change settings when performing PC-FAX TX from the application software, click [Properties] (or [Preferences]) in the [Print] screen to open the [Printing Preferences] screen.

Items common to each tab

The following explains the commonly used settings and buttons in each tab.

Setting

Description

[Favorite Setting]

You can register the current print settings as a favorite and recall it when sending a fax.

For details on the [Favorite Setting], refer to Here.

View

Displays the page layout sample with the current settings so that you can check the transmission fax image.

[Printer Information]

Click this button to start Web Connection and check the printer information. This button is enabled only when your computer can communicate with this machine.

[OK]

Applies the changes made to the settings and closes the setting window.

[Cancel]

Discards (or cancels) the current changes and closes the setup window.

[Help]

Displays the help for each item in the window.

[Default]

Reverts the settings to their default values.
