Layout Setting

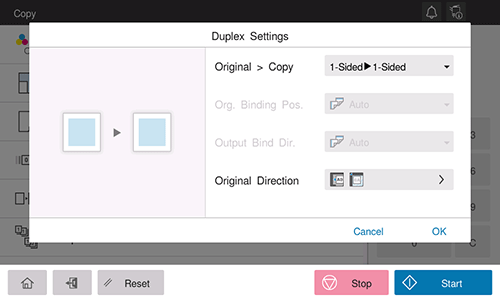

Copying on both sides of paper ([Duplex Settings])

Copy a 1-sided or 2-sided original on a single side or both sides of paper.

Setting

Description

[Original > Copy]

Select a combination of original scanning side (Simplex/Duplex) and original printing side (Simplex/Duplex).

[Org. Binding Pos.]

Select the binding position of the original when scanning both sides of the original.

  • [Auto]: The binding position of the original is specified automatically. When the long side of the original is 11-11/16 inches (297 mm) or less, the binding position is set to the long side of the paper. When the long side of the original exceeds 11-11/16 inches (297 mm), the binding position is set to the short side of the paper.

  • [Left Bind]: Select this option when the binding position is set to the left of the original.

  • [Right Bind]: Select this option when the binding position is set to the right of the original.

  • [Top Bind]: Select this option when the binding position is set to the top of the original.

[Output Bind Dir.]

Select the binding position to perform 2-sided copying.

  • [Auto]: The binding position of a copy is specified automatically. When the long side of the original is 11-11/16 inches (297 mm) or less, the binding position is set to the long side of the paper. When the long side of the original exceeds 11-11/16 inches (297 mm), the binding position is set to the short side of the paper.

  • [Left]: Select this option when setting the binding position to the left of a copy.

  • [Right]: Select this option when setting the binding position to the right of a copy.

  • [Top]: Select this option when setting the binding position to the top of a copy.

[Original Direction]

Specify the orientation to load the original.

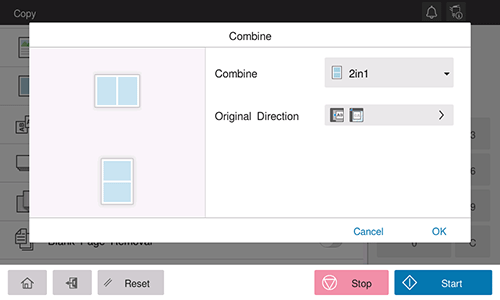

Copying multiple pages on the same side of a single sheet ([Page Combine])

Select the number of original pages to be copied on a single page. When combining four pages on a single page, select the page layout from Horizontal and Vertical. Specify the original loading orientation to place pages correctly.
